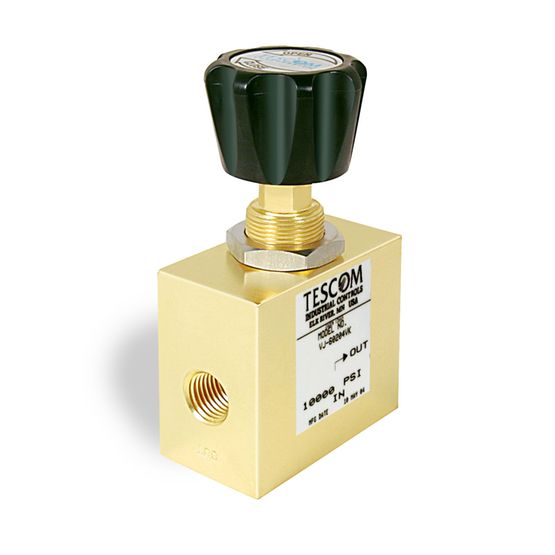

VJ Series Valve Pressure Control

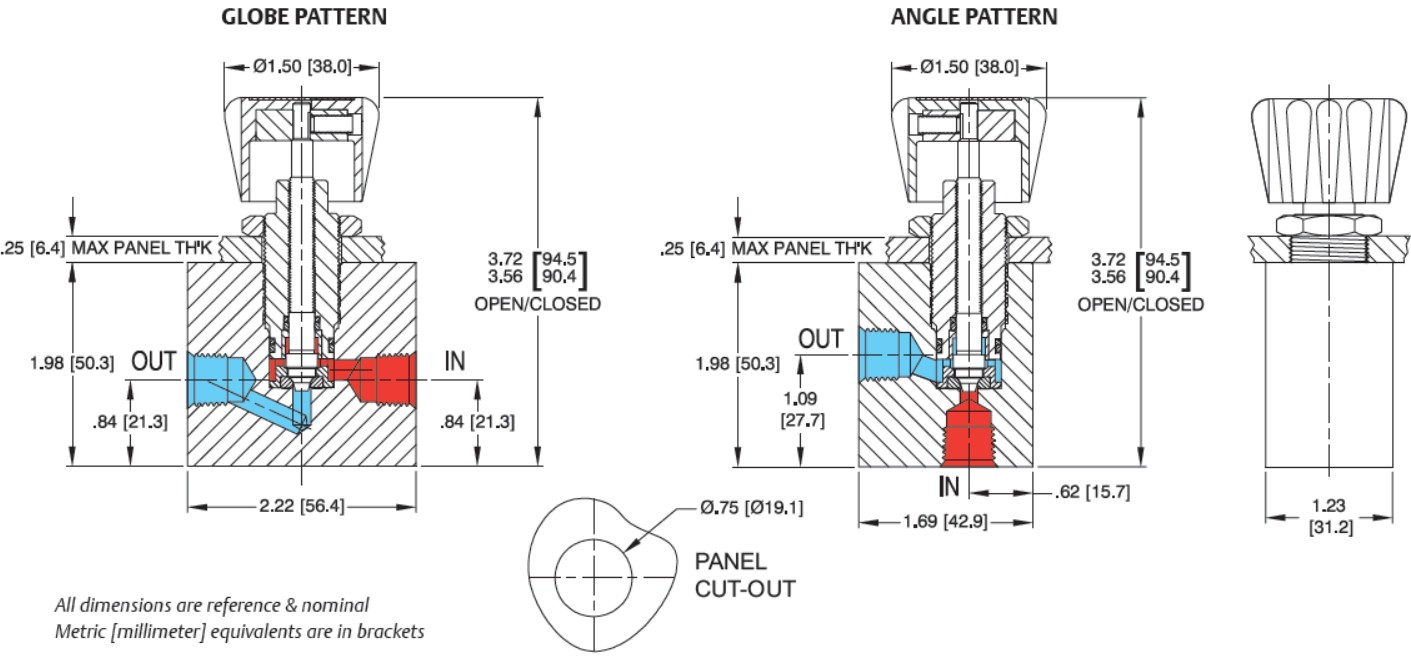

VJ Series hand valves offer control pressure of 6000 and 10,000 psig / 414 and 690 bar. Available in angle and globe patterns. Ideal for use in pressure control panels and Ground Support Equipment (GSE).
分享到
- Maximum Operating Pressure
- 316 Stainless Steel Body: 10,000 psig / 690 bar
Brass Body: 6000 psig / 414 bar
- Body Material
- 316 Stainless Steel or Brass
- Seat Material
- CTFE, Nylatron, Peek, Teflon® or Vespel®
- Back-up Ring
- Teflon®
- O-Rings
- Buna-N, Ethylene Propylene, Kalrez® or Viton®
- Remaining Parts
- Monel® and Brass or Stainless Steel
- Operating Temperature
- See Data Sheet
- Port Size & Type
- 1/4, 3/8 (available in globe pattern only)
BSPP, SAE, NPTF, MS33649
- Flow Capacity
- Cv = 0.49 Angle
Cv = 0.28 Globe
- Weight
- 1.5 lbs / 0.7 kg
