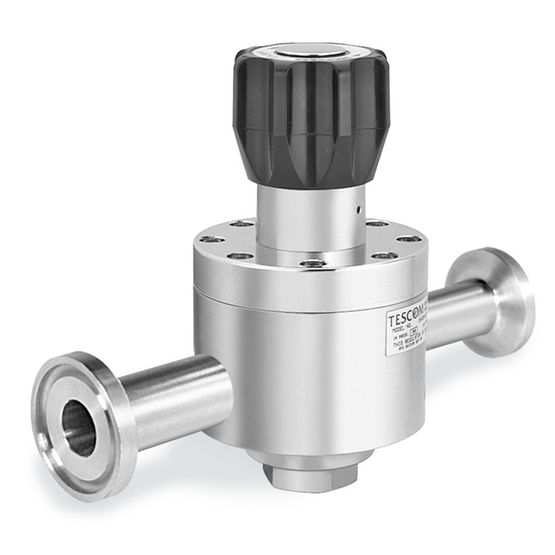

DH16 Series Regulator Nitrogen Gas

DH-16 low pressure, high flow regulator is designed for applications with flows from 5-200 SCFM / 141-5663 SLPM. Its Gylon^® diaphragm ensures gas purity and integrity. Welded sanitary, tubing, or VCR^® connections are standard. Ideal for use in nitrogen purging or facility tool and equipment for air or nitrogen.

Pressure Rating: Maximum Inlet Pressure: 300 psig / 20.7 bar
Outlet Pressure Ranges: 0 –
20, 50, 100, 150, 250, or 300 (dome loaded only) psig
1.4, 3.4, 6.9, 10.3, 17.2, or 20.7 bar

Body, Bonnet, Back-cap: 316 Stainless Steel

Diaphragm: Ethylene Propylene, Gylon®

Seat Material: Vent: CTFE, Vespel®
Main Valve: Buna-N 90, Ethylene Propylene 80, Chemraz 75®, Viton®

O-Rings: Buna-N, Ethylene Propylene, Chemraz®, Viton®

Remaining Parts: 300 Series Stainless Steel, Nitronic 60

Operating Temperature: -20°F to 165°F / -29°C to 74°C

Port Size & Type: 1/2 , 3/4 , 1 , 1 1/2
FVCR, MVCR, Tube
1/4 NPTF, HPIC (gauge only)1/2 port limits regulator Cv to 2.0
3/4 port limits regulator Cv to 3.0
