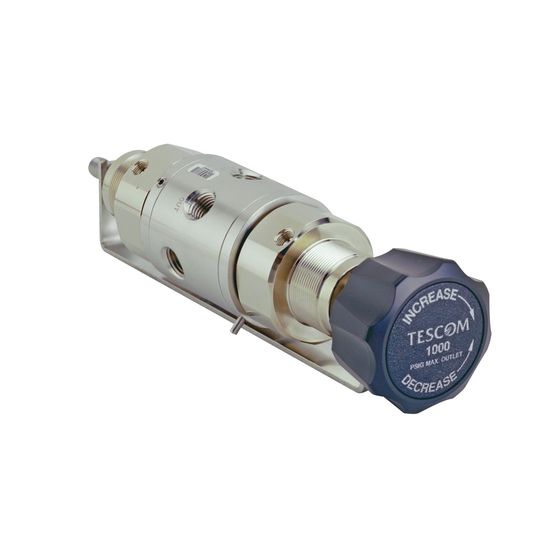

CR441800 Series Changeover Pressure Regulator

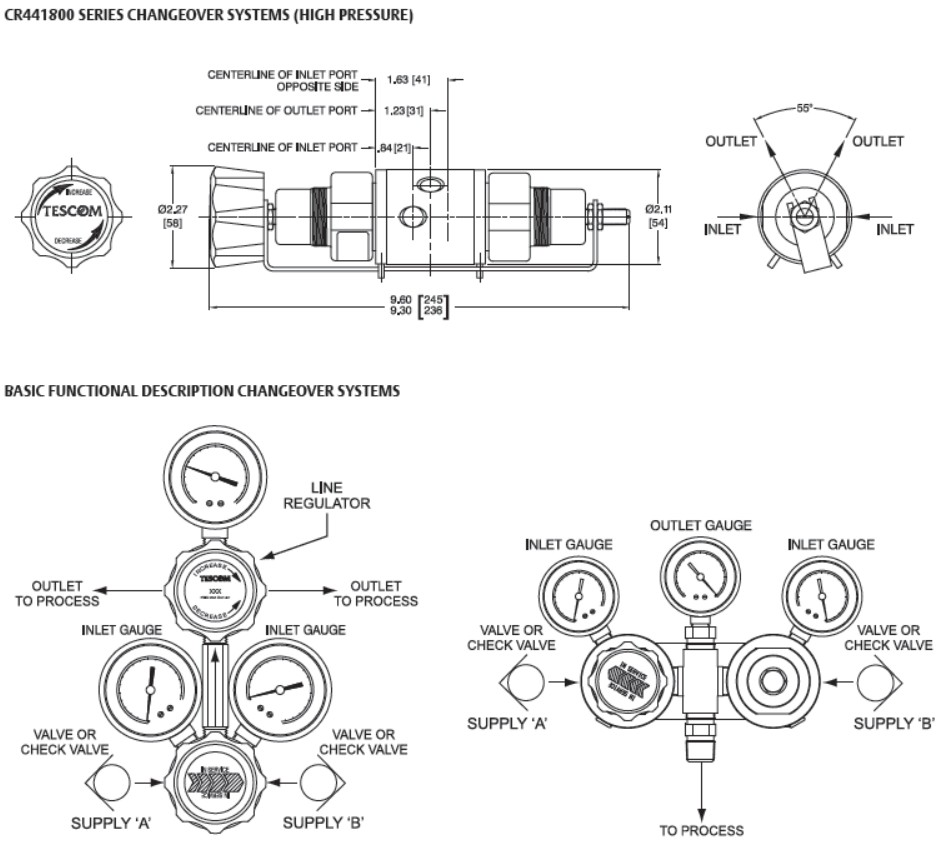

CR441800Series is a compact, high pressure changeover system which combines the changeover regulator and a line regulator into a compact wall mount system for general purpose and industrial gases. It provides continuous low flow of gas from two high pressure sources. Ideal for use in analyzer carrier gas and laser resonator gas applications.

Maximum Inlet Pressure: 3500 or 6000 psig / 241 or 414 bar

Maximum Delivery Pressure: Seven maximum delivery pressures from 500 to 2000 psig / 34.5 to 138 bar

Materials: Body: Brass, 316 Stainless Steel, or Nickel-plated Brass
Bonnet: 300 Series Stainless Steel, Brass, or Nickel-plated Brass
Valve Seat: Vespel®
O-Ring: FKM
