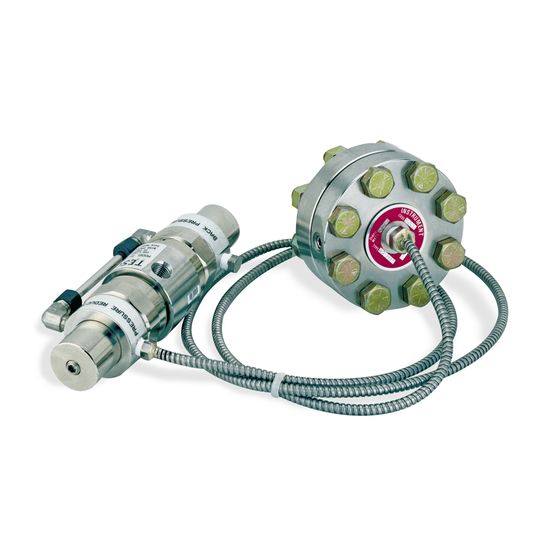

42MW Series Pressure Instrument Isolator

42MW Series instrument isolator is typically used with a SJS Series pressure tracking regulator – see SJS Series tracking regulator. This device isolates the regulator from corrosive and incompatible fluids. Ideal for dual mechanical seal differential pressure control.

Pressure Rating
Maximum Rated Pressure: 2500 psig / 172 bar
Material
Upper and Lower Housing: 316 Stainless Steel
Diaphragm: Welded 316 Stainless Steel
Remaining Parts: 316 Stainless Steel
Operating Temperature
-40°F to 600°F / -40°C to 315°C
Port Size & Type
1/4, 3/8, 1/2 NPTF
