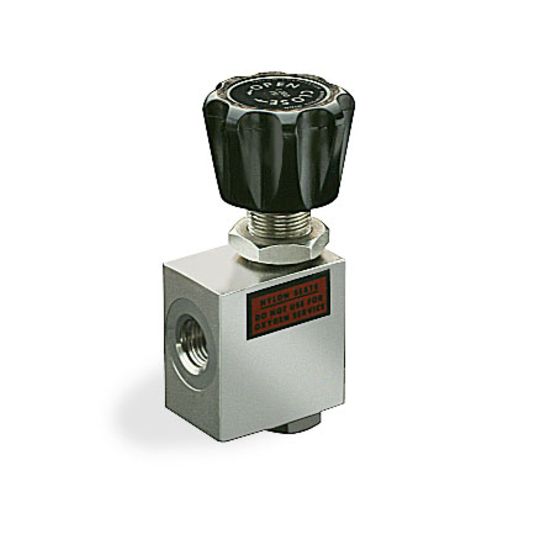

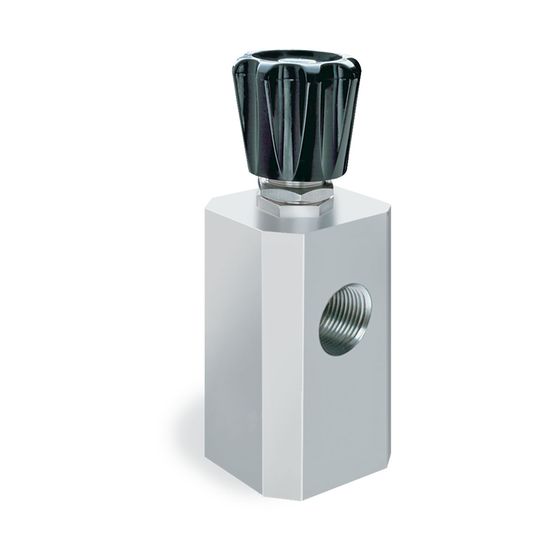

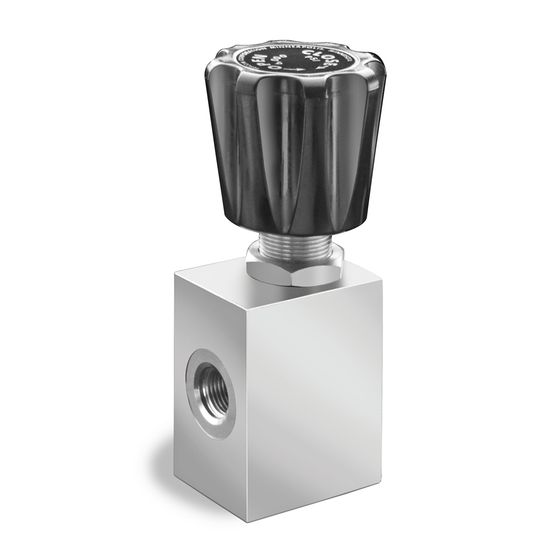

30 Series Shutoff Pressure Valve

30 Series shut-off valves are high pressure, high flow applications up to 10000 psig / 690 bar and offer Cv = 0.28-20.0. The 30 Series offer globe and angle pattern bidirectional flow, soft seat and built-in metallic stop. Ideal for use in GSE support pressure panels, instrumentation pressure panels and manifolds. Suitable for Research and Developement labs and gas analysis sampling systems.

Maximum Operating Pressure: 6000, 10,000 psig / 414, 690 bar

Body Material: 316 Stainless Steel

Seat Material: 30-1100 and 30-1300: Nylatron
30-1200 and 30-1400: CTFE

O-Rings: Buna-N

Back-up Rings: 30-1100: CTFE
30-1200: 15% graphite filled Teflon®
30-1300 and 30-1400: Teflon®

Remaining Parts: 316 Stainless Steel, 17-4 Stainless Steel

Ambient Operating and Fluid Temperature: -40°F to 165°F / -40°C to 74°C

Port Size & Type: 1/4, 3/8, 1/2, 3/4, 1, 1 1/2
BSP, Medium Pressure (Available on 30-1100 only)
SAE, NPTF (Not available on 30-1400)
MS33649

Flow Capacity: 30-11X1: Cv = 0.28
30-11X0: Cv = 0.49
30-1301: Cv = 1.57
30-1300: Cv = 2.30
30-1201: Cv = 8.00
30-1200: Cv = 10.00
30-1400: Cv = 20.00

Weight: 30-11X1: 1 lb / 0.5 kg
30-11X0: 3/4 lb / 0.3 kg
30-1301: 3-1/4 lbs / 2 kg
30-1300: 2-1/4 lbs / 1 kg
30-1201: 8 lbs / 4 kg
30-1200: 7-1/4 lbs / 3 kg
30-1400: 30 lbs / 14 kg
