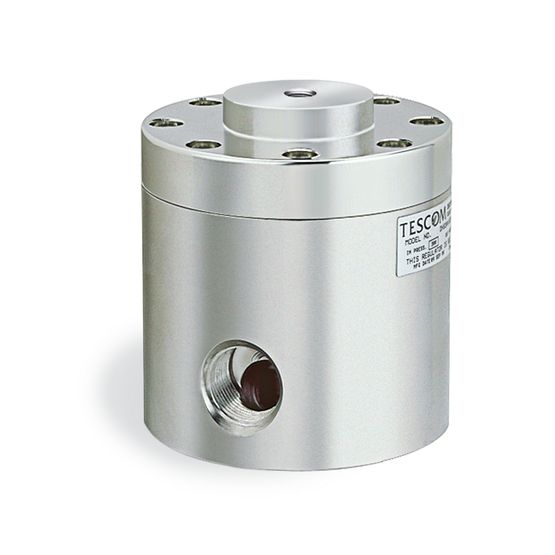

26-2500 Series Backpressure Control Regulator

26-2500 Series has a Cv = 5.0 for high flow backpressure applications. Large diaphragm provides excellent sensitivity and minimal crack-to-reseat pressure differential. Ideal for use in pump discharge pressure control.

Controlled Pressure Ranges: 0-20, 0-50, 0-125, 0-200 psig
0-1.4, 0-3.4, 0-8.6, 0-13.8 bar
0-300 psig / 0-20.7 bar for Air load

Body, Bonnet, Back-cap: 316 Stainless Steel or Brass

Main Valve Seat: Buna-N, Ethylene Propylene, Chemraz® or Viton®

Diaphragm: Gylon® and Viton®

O-Rings: Buna-N, Ethylene Propylene, Chemraz® or Viton®

Operating Temperature: -20°F to 165°F / -29°C to 74°C

Port Size & Type: Inlet & Outlet Port Type: SAE, NPTF, MS33649
Inlet & Outlet Port Size: 1/2, 3/4, 1

Flow Capacity: Cv = 5.0

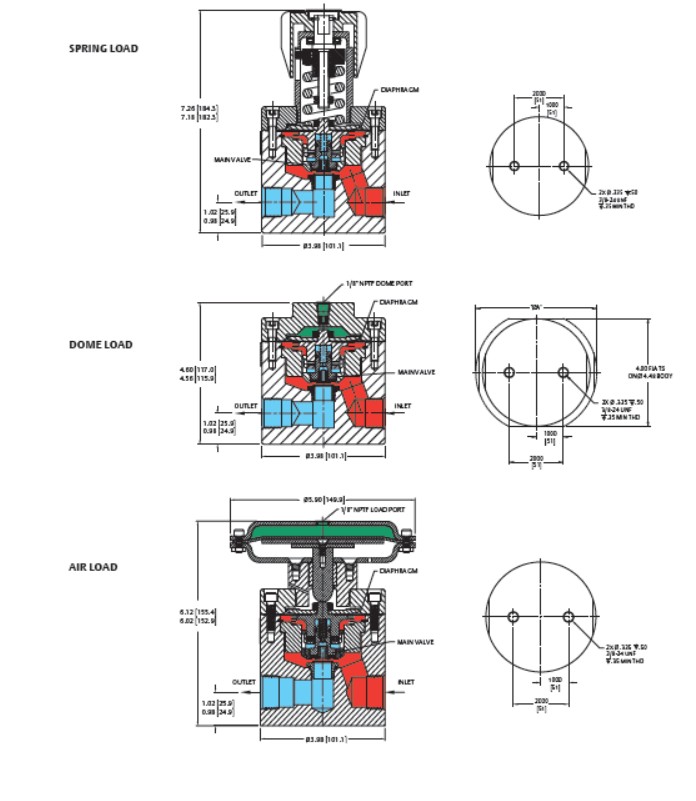

Load Type: Spring, Air, Dome

Weight: Stainless Steel: 15 lbs / 6.8 kg
Brass: 16 lbs / 7.3 kg
