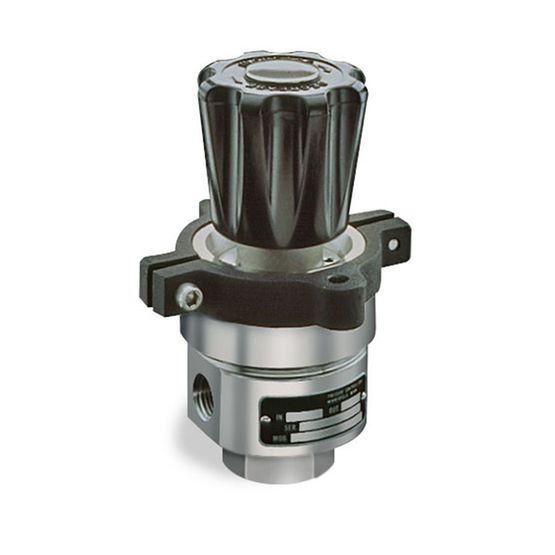

26-1500 Series Non-Venting Pressure Regulator

26-1500 Series non-venting regulator offers a sensitive, large elastomeric diaphragm design and precision outlet pressure control. Ideal for use in research labs, breathing air diving manifolds, low flow purge systems, gas and liquid sampling.

Maximum Inlet Pressure: Stainless Steel: 6000 psig / 414 bar
Brass, Aluminum: 5000 psig / 345 bar

Outlet Pressure Ranges: 0-50, 0-150, 0-250 psig / 0-3.4, 0-10.3, 0-17.2 bar

Body Material: 316 Stainless Steel, Brass, Aluminum

Bonnet Material: 300 Series Stainless Steel

40 Micron Filter Material: 316 Stainless Steel

Seat Material: CTFE

O-Rings & Diaphragm Material: Buna-N

Remaining Parts Material: 300 Series Stainless Steel

Ambient Operating Temperature and Fluid Media Temperature: -40°F to 165°F / -40°C to 74°C

Port Size & Type: SAE, NPTF, MS33649
1/4, 3/8, 1/2 (Stainless Steel only)

Flow Capacity: Cv = 0.08

Load Type: Spring

Weight (without gauges): 3 lbs / 1.4 kg
